From Failed Part to Validated Replacement — Rapidly.
When production stops, engineering response matters. Sapphire RapidFab™ runs one accountable journey — scan, reverse engineer, manufacture, inspect, document, deliver — with the waiting taken out.
A Stopped Line Is the Most Expensive
Machine You Own.
RapidFab exists because three things are usually true when a critical part fails.
Every idle hour compounds — lost output, waiting operators, missed commitments. The component is small. Its absence is not.
The original maker has discontinued the part, changed the design, or quotes a one-off on terms production cannot absorb.
Standard supply chains are built for catalogue items — not for a one-off engineered replacement a line is waiting on.
Eleven Stages. One Roof.
No Hand-Off Gaps.
From the moment the failed component arrives to the moment its validated replacement ships, every stage runs under one accountable owner.
Broken Component
The failed part arrives — with whatever fragments, wear and history it carries.
Scan / Measure
Every functional surface, fit and feature measured with precision instruments.
Reverse Engineering
Geometry, fits, tolerances and design intent reconstructed — including why it failed.
Material Analysis
The material identified — and upgraded where the failure mode justifies it.
CAD
A complete 3D model and manufacturing drawing — the part's new permanent record.
Manufacturing
Precision machining and fabrication directly from the fresh engineering data.
Inspection
Dimensional verification against the drawing, feature by feature.
Surface Treatment
Hardening, grinding, coating or plating — as the application demands.
Cleaning
Deburred, cleaned and protected for handling, transit and storage.
Quality Documentation
Inspection results and material records compiled and supplied with the part.
Delivery
The validated replacement reaches your floor — and its data stays on file.
Speed From Method — Not Shortcuts.
RapidFab compresses the journey by removing the waiting, not by removing the engineering.
Engineering Starts at Receipt
Assessment and measurement are the first job when a component arrives — the technical work doesn't sit waiting for commercial paperwork.
Parallel, Not Sequential
Scanning, CAD, material analysis and quotation run side by side wherever the engineering allows — stages overlap instead of queueing.
Decision-Ready Quotations
The quotation arrives with the engineering assessment attached — one review, one approval, no clarification loop.
Inspection Inside the Flow
Verification runs in-process as well as at final stage, so issues surface while there is still time to act on them.
The Parts Production
Waits For.

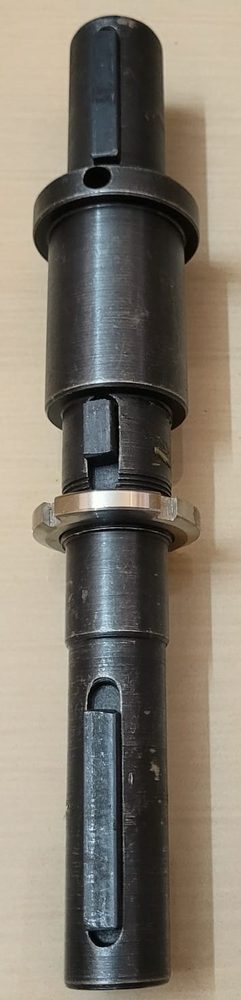

Shafts, gears, cams, bushings, rollers, couplings — the components that stop a line when they fail, and rarely exist on a shelf.
- Works from broken, worn or partial samples
- Failure-aware material and treatment selection
- Machining, treatment and finishing in one accountable workflow
- Every replacement leaves a retained engineering record
Part obsolete rather than broken? See Obsolescence Engineering™. Not sure where your case fits? Start at the Part Rescue Centre.
The Same Stages —
Without the Waiting.
Two paths through the same engineering. The difference isn't fewer steps — it's what happens between them.
Response and delivery timelines depend on component complexity, material and its availability, surface-treatment requirements, inspection scope and current production load. Every RapidFab enquiry receives an engineering assessment and a component-specific schedule before manufacture begins — never an assumed standard duration.
When Production Stops,
Call Engineering.
A photo and a phone call are enough to begin. Send the failed part's story — we answer with an engineering assessment.
